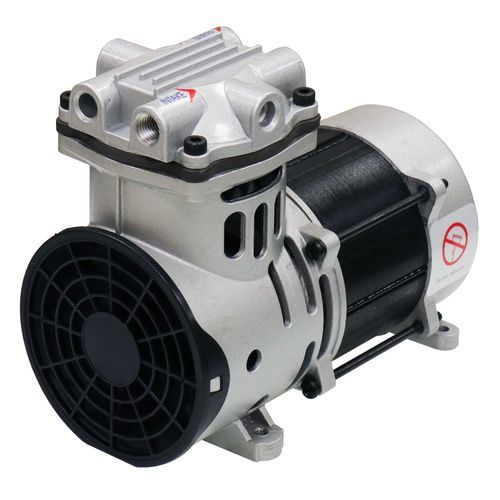

Medical vacuum pump UN-40Voil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Options
- oil-free
- Flow
45 l/min
(11.89 us gal/min)- Power
180 W
(0.24 hp)- Weight
5.2 kg
(11.5 lb)- Length
190 mm
(7.5 in)- Width
105 mm
(4.1 in)- Height
165 mm
(6.5 in)
Description
UN-40V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well.
Feature：
Can be used as vacuum pump,Oilless operation, Low noise level
Application：
Vacuum / Sputum suction machine,Vacuum packing machine,Coating machine
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 110 or 220
Vacuum - mmHg - 660
Open Flow - LPM - 45(60Hz) / 40(50Hz)
Installation Size - mm - 126 x 83 x M6
Hose Suggestion - - 1/4"PT牙
