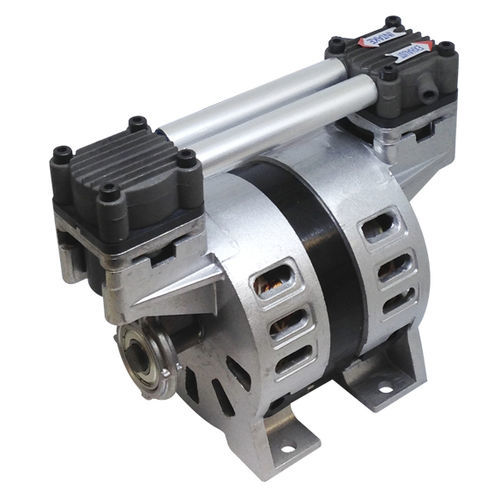

Medical vacuum pump UN-50Doil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Options
- oil-free
- Flow
20 l/min
(5.28 us gal/min)- Power
85 W
(0.12 hp)- Weight
2.3 kg
(5.1 lb)- Length
140 mm, 165 mm
(5.5 in, 6.5 in)- Width
90 mm
(3.5 in)- Height
117 mm, 124 mm
(4.6 in, 4.9 in)
Description
Can be used as vacuum pump, Oilless operation, Low noise level,Compact design
Application：
Cupping machine, Various application,Plate-making machine
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 110 or 220
Vacuum - mmHg - 620
Open Flow - LPM - 20(60Hz) / 16(50Hz)
Installation Size - mm - 44 x 78
Hose Suggestion - mm - 6
