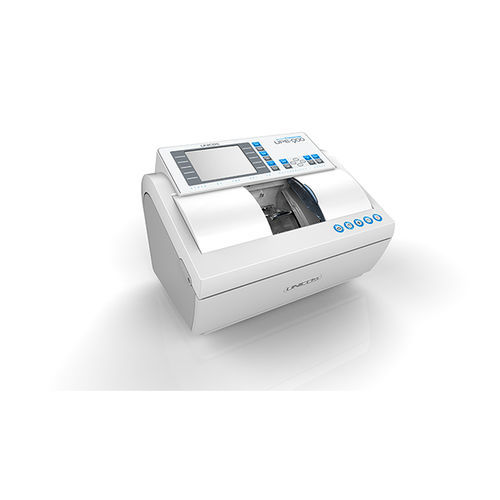

Optical lens edger UPE-900

optical lens grooverpaternlessthree-dimensional

Operation All edging parameters are adjustable via the intuitive operator's interface. The large Color Touch Screen(8 inch) offers a clear understanding of the edging program. The lens The lens shape can be easily modified to fit a optician's needs. One interesting feature is the possibility yto check the availability to re-edge an already edged lens to fit a new frame. Built-in The built0in safety bevel0grooving function could be ajustable by the operator who can simply modify all parameters(width, depth) using the color touch screen. UPE UPE-900 uses only the best mechanical and electronic components which will guarantee a bvery high level of reliability even in very demanding environ-ments. - 3D Patternless Lens Edging for Lab - Grooving & Chamfering - User Friendly Operation - OMA compliance SPECIFICATIONS Mode Mineral / Organic / Hi-index / Polycarbonate / Trivex / Acrilic Finishing. Bevel-Automatic -According to lens / Frame base curve -Customisabel Mini bevel(mini 0.6mm) Rimless Rolishing bevel and rimless Lens capacity Mini 17mm Maxi 80 mm Built in Software Shape modification -Up / Down, Temporal/ Nasal, Annular Re-edging already edged lens Interface PORT 1 (Selectable) -RS232C : For PC or Lens Edger -TCP/IP : For internet server PORT 2 (Optional) RS232C : For Barcode reader Power Supply AC 100V - 240V 50/60Hz Power Consumption 1KVA Dimension / Weight 580 (H) X 440 (D) X 400 (H) , 36Kg
