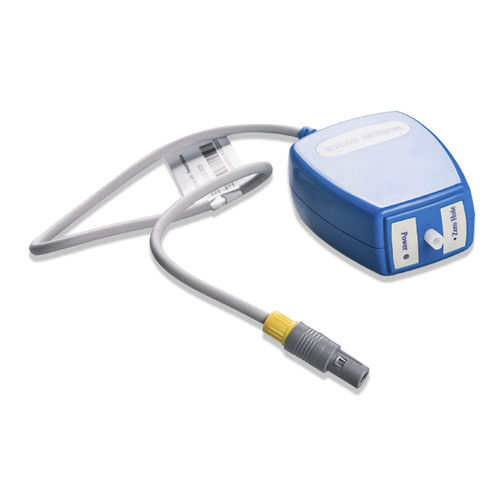

EtCO2 sensor UECO2 series

intensive care

UECO2-001 is compatible with Phase in ISA AX+ UECO2-002 can replace OEM Philips M2741A, 989803144591 and is compatible with M3041A UECO2-003 for OEM Respironics 1022054 and is compatible with C5 UEC02-004 for OEM Zoll 8000-0367 and can work with E series and M series The products image is just for your reference. You have to choose a model because there are different monitor connectors for corresponding ETCO2 Sensors. SPECIFICATIONS Mode of Sampling Side-stream Principle of Operation Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts. Initialization Time Capnogram displayed in less than 4 seconds, At an ambient temperature of 25° C, full specifications within 2 minutes. CO2 Measurement Range 0 to 152 mmHg, 0 to 20.0% 0 to 20 kPa (Barometric Pressure supplied by module and mmHg reading is auto-calculated) CO2 Calculation Method BTPS (Body Temperature Pressure Saturated) CO2 Response Time <4 seconds - includes transport time and rise time CO2 Resolution 0.1 mmHg 0 to 69 mmHg 0.25 mmHg 70 to 152 mmHg CO2 Accuracy * 0 - 40 mmHg ± 2 mmHg 41 - 150 mmHg ± 10 % of reading Above 80 breath per minute ± 10%of reading * NOTE: Gas temperature at 25° C. CO2 Stability Short /long Term Drift: Drift shall not exceed 1 mmHg maximum. Module will auto run zero calibration when drift exceed 1 mmHg. CO2 Noise RMS noise of the module shall be less than or equal to 0.25 mmHg at 5% CO2 Sampling Rate 100 Hz Respiration Rate Range 2 to 150 breaths per minute (BPM) Respiration Rate Accuracy 1% of reading, ± 1 breath Calibration ETCO2 Calculation Method: No routine user calibration required.
