Infusion needle catheter Carr-Locke

accessesophagealhuman

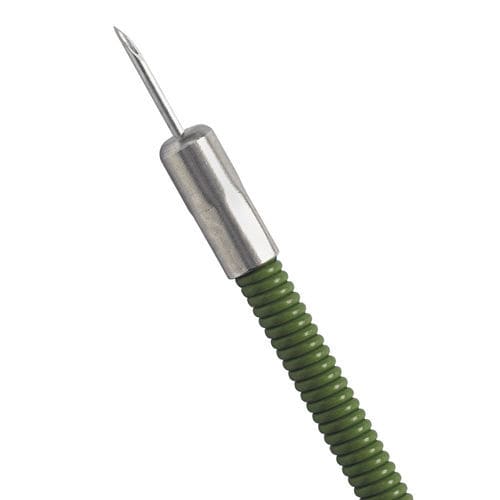

Designed with a green, Teflon® - coated spring sheath to ensure consistent needle projection and retraction every time, even in the most tortuous conditions Available in sheath diameters of 2.5mm with a 23- or 25-gauge injection needle and 1.8mm with a 25-gauge needle for endoscopes with smaller working channels Luer-lock, spring-loaded handle automatically retracts the needle, helping to reduce the risk of inadvertent needle sticks and scope damage The Carr-Locke injection needle has become the everyday endoscopic injection needle of choice for many around the world. The Carr-Locke needle was developed to perform in the most tortuous conditions, including when the endoscope is in retroflexion or the elevator is engaged in a duodenoscope. The patented stainless steel, Teflon-coated spring sheath design helps to ensure consistent needle projection and retraction making it the ideal endoscopic needle for injection therapy. Stainless steel, Teflon-coated spring sheath is designed to minimize sheath kinking and ensure consistent endoscopic needle projection every time while providing smooth insertion down the endoscope channel Luer-lock, spring-loaded handle automatically retracts the injection needle, helping reduce the risk of inadvertent needle sticks and scope damage Requires less than 1cc of fluid to prime (most needles require 1.5-2.0cc) potentially providing cost savings The ultra-smooth distal metal hub is designed to reduce the risk of the needle perforating the catheter Available in 2.5mm diameter with 23- or 25-gauge injection needle for standard or larger working channel endoscopes and 1.8mm for smaller working channel endoscopes
