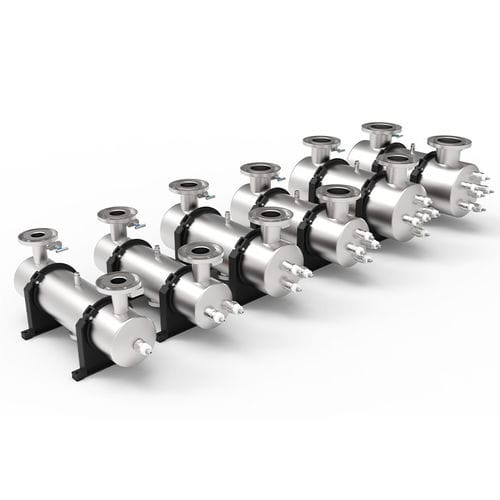

Water purification system for the pharmaceutical industry DFI series

UV

In addition to traditional pre-treatments, our UVc water purification devices bacteriologically secure the quality of fluids before reuse. Intervening at the end of the treatment chain makes it possible to limit overconsumption and wastage of water. Its bacteriological quality is thus maintained throughout recycling. Our specialized ranges meet all types of water treatment needs and guarantee satisfactory water quality for your activities. Disinfection for collective use Food industry Chemical and pharmaceutical industry Process water Effluents Features 316 L stainless steel chamber Max. pressure 6 bars (higher pressure on demand) Water temperature 0 to 40 °C Visual control cell Flanged connections Quartz sleeve Sampling valve Inspection door and drain valve Electromecanical hour counter Electrical cabinet Single-head lamp amalgam 12 000h Lamp visual witness Electronic ballast 220 V+T supply to be provided Spare parts UVc lamp : 12 000 h O-ring : 12 000 h Quartz sleeve : 5 years RANGE DEVICES Max flow : 15,08 m3/h Power : 1X130W cabinet In/Out : 2’’MA flanges Max flow : 52,55 m3/h Power : 3X130W cabinet In/Out : 3’’MA flanges Max flow : 110,48 m3/h Power : 5X130W cabinet In/Out : 4’’MA flanges Max flow : 25,55 m3/h Power : 2X130W cabinet In/Out : 2’’1/2 MA flanges Max flow : 77,53 m3/h Power : 4X130W cabinet In/Out : 4’’MA flanges Max flow : 130 m3/h Power : 6X130W cabinet In/Out : 5’’MA flanges
