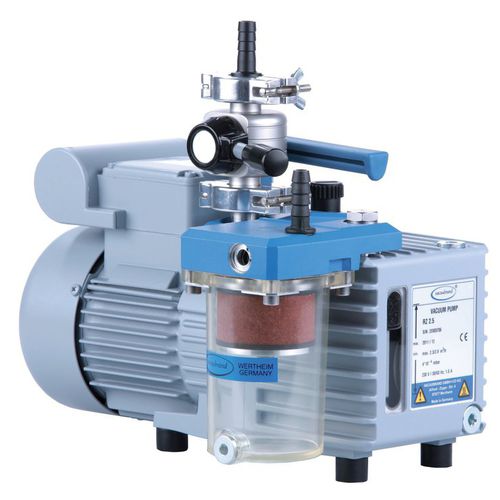

Laboratory vacuum pump RZ 2.5

rotary vanelubricatedmulti-stage

Overview

• High pumping speed maintained even close to ultimate vacuum
• Good ultimate vacuum performance, including with gas ballast
• Vacuum‑tight on shutdown — no external anti‑suckback valve required
• Large oil capacity for extended oil change intervals
• Telescopic design for simplified maintenance

Product summary
The two‑stage RZ 2.5 is a compact, lightweight rotary vane pump designed for laboratory and process applications that require a low ultimate vacuum at medium gas throughput. The unit is available as a complete package including oil mist filter FO and isolation/butterfly valve VS 16, supplied ready for operation.

Included in the package

• Pump filled with pump oil and fully assembled, ready for use
• Oil mist filter (FO)
• Isolation / butterfly valve VS 16
• User manual

Technical data

• Max. pumping speed 50 Hz: 2.3 m3/h
• Max. pumping speed 60 Hz: 1.65 cfm
• Ultimate partial pressure (abs.) without gas ballast: 4 x 10^-4 mbar
• Ultimate vacuum (abs.): 2 x 10^-3 mbar / 1.5 x 10^-3 torr
• Ultimate vacuum with gas ballast: 1 x 10^-2 mbar / 0.75 x 10^-2 torr
• Number of stages: 2
• Operating ambient temperature: 12 °C to 40 °C
• Storage temperature range: -10 °C to 60 °C
• Max. back pressure (abs.): 1.1 bar
• Oil capacity (B‑Oil) min/max: 0.36 l / 0.84 l
• Inlet connection: KF DN 16 small flange / hose nozzle DN 10 mm
• Outlet connection: Hose nozzle DN 8–10 mm
• Rated motor power: 0.1 kW
• Rated speed 50/60 Hz: 1500 / 1800 min^-1
• Protection class (IEC 60529): IP 40
• Dimensions (L x W x H): 390 x 230 x 240 mm
• Weight: 15 kg
• Noise (sound pressure) at 50 Hz: 48 dBA

Features / technical specifications

• Model: RZ 2.5 (two‑stage rotary vane pump)
• Package version: +FO (oil mist filter) +VS 16 (isolation/butterfly valve)
• Typical applications: laboratory vacuum systems, process lines with medium gas load
• Design advantages: compact footprint, low weight, vacuum‑tight shut‑off
• Delivered ready to use with oil, FO filter and VS 16 valve
