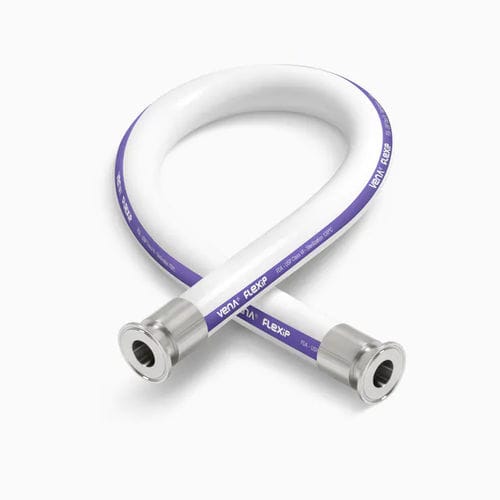

Suction tube Vena® Flexip

It has a good resistance specially in fatty or oily foods and glycols, as well as alcoholic beverages. This hose is specially recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries. It has good resistance specially in fatty products or oily foods and glycols, as well as alcoholic beverages. Shapes such as elbows and curvatures can also be manufactured to adapt them to any installation. Traceability Silicone label QR Marking Special marking Assemblies Molded clamps Standard fittings Clamps fittings with an inner cover of PFA (under request) 316L Stainless steel fittings on each with a roughness value of less than 0.8µm (or 0.5 µm on request) crimped with SZR system (no retention area). Shapes Elbows and special shapes under request Outer Layer White and smooth inner_layer Inner Layer White and smooth temperature Temperature -20ºC(+4ºF) to 175ºC (347ºF) it may reach up to 200ºC (372ºF) manufacturing_length Manufacturing Length The standard manufacturing length is 4 meters long (13.12 ft) but in specific diameters a length of 6 meters (19.69 ft) can be manufactured. vacuum_pressure Vacuum Pressure 0.91 bar(13.23 psi
