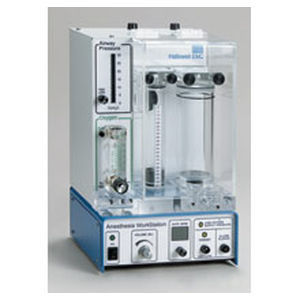

The AWS can be used for basic respiration or as a volume ventilator for use with inhalation anesthetics for animals 150gm to 7kg.
This compact system features:
0.2 to 1 LPM oxygen flowmeter
5 LPM oxygen flush button interlocked with the expiratory phase of the breathing cycle
Adjustable high-pressure limit
Airway pressure manometer
0-100ml tidal volume displacement ventilator tube
300ml CO2 absorber and heated breathing system chamber
Volume control, rate control, and low O2 supply pressure alarm.
(Does not include anesthetic vaporizer.)
