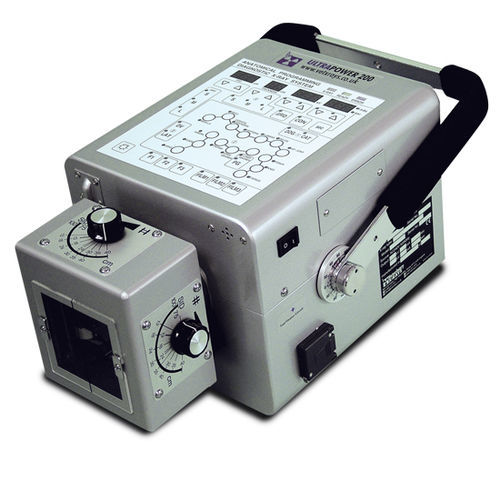

The fantastic new high frequency Ultrapower 200 enables x-rays to be taken accurately and simply time after time.
Instead of referring to your exposure guide, just click the animal type, size and area of interest and the Ultrapower 200 will set the correct exposure factors for you automatically
Fully anatomically programmed.
kV range from 30 to 100kV in 2kV steps
DR ready. Plug your DR system directly with no additional synchronisation boxes
High frequency mA from 25 to 40
Wipe clean touch panel display
Digital display of kV, mAs and time
Automatic line voltage compensation, ensuring output accuracy
Audible exposure warning
Powered by 13A domestic supply
Suitable for use with any of our stands, tables and mountings
5 year extended warranty
kV (2kV steps) mA
30 to 60kV 40mA (effective 100mA)
62 to 70kV 35mA (effective 87.5mA)
72 to 80kV 30mA (effective 75mA)
82 to 100kV 25mA (effective 62.5mA)
Source - Single phase AC 50/60Hz 240v
Timer - 0.01 to 2 seconds
Focal spot - 1.2mm x 1.2mm
Filtration - 2.7mm Al equivalent
Dimensions - 290(w) x 400(l) x 230(h) mm
Total weight - 16kg
