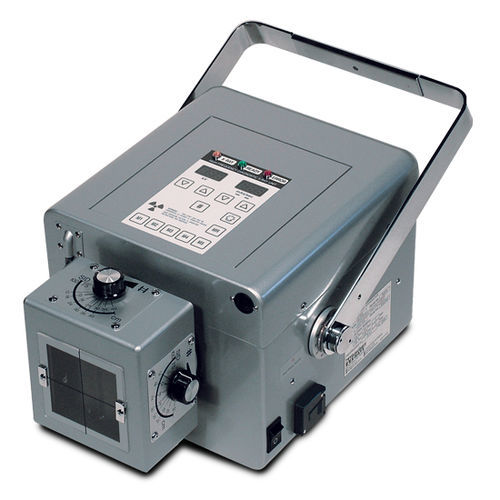

Veterinary radiography X-ray generator Ultrapower 400

portable

The new class leading high frequency, high power 6kW Ultrapower 400 moves portable x-ray units to a powerful new level. KV range from 40 to 120 in 2kV steps Maximum high frequency 100mA, an effective conventional 250mA DR ready. Plug your DR system in and go, no remote synchronisation box needed Wipe clean touch panel displays Digital display of kV, mAs and time Built in dual laser, measuring beam centre and distance. Accurate positioning every time Automatic line voltage compensation, ensuring output accuracy Switchable audible exposure warning 5 preset memory functions Powered by 13 amp domestic supply Total weight of 21kg Suitable for use with any of our range of stands and mountings 5 year extended warranty kV (2kV steps) mA 40 to 50 kV 100 mA up to 0.1s and 70 mA up to 2.0s 52 to 60 kV 80 mA up to 0.1s and 56 mA up to 2.0s 62 to 80 kV 70 mA up to 0.1s and 49 mA up to 2.0s 82 to 100 kV 60 mA up to 0.1s and 42 mA up to 2.0s 102 to 120 kV 40 mA up to 0.1s and 28 mA up to 2.0s Source - Single phase AC 50/60Hz 240v Timer - 0.01s to 2.0s Focal spot - 1.6mm x 1.6mm Filtration - 2.7mm Al equivalent Dimensions - 290(w) x 430(l) x 240 (h) mm Total weight - 21kg
