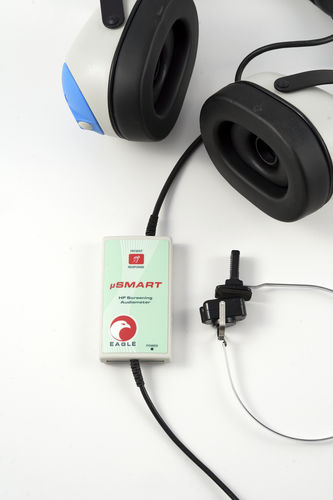

Screening audiometer nSMART

for adult audiometrydigital

nSMART is a class II screening audiometer. Small weight and dimensions of the device are perfect solution for occupational health service and ENT clinics. nSmart is equipped with Air conduction receiver. Additionally, there is the option of retrofitting a audiometric bone conduction receiver and Free Field loudspeaker. The device operates as a module to the computer. The system includes an Effetha 2 software, to the recording of all visits in the database. Audiometer has an integrated touch panel which is working as patient response button. The maximum sound level up to 130 dBHL. It works with a PC / Laptop, with USB 2.0 port, software Effetha and Windows XP / Vista or Linux (Vmware). Technical specification: Outputs: left / right AC, BC Frequences AC [Hz]: 125, 250, 500, 750, 1k, 1.5k, 2k, 3k, 4k, 6k, 8k BC [Hz] (option): 250, 500, 750, 1k, 1.5k, 2k, 3k, 4k, 6k, 8k Level (AC): -10dBHL ~ 130dBHL Level (BC): –10dBHL ~ 85dBHL Level (mask.): to 100dBHL Level (FF): to 90dB Step: 5dB Tone: pure, pulsed, modulated Masking: narrowband Tests: manual
