Endoscope light source VIDEOSMART

xenoncold

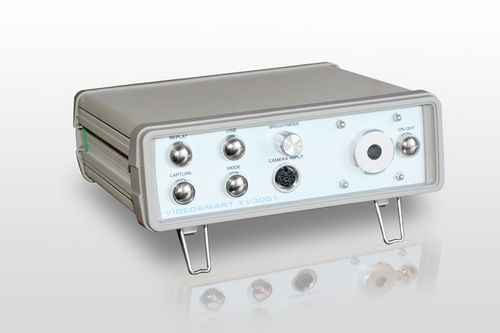

VIDEOSMART is a Xenon Cold Light Source with built-in Video Processor. As a light source, a 35W metal – hallide, so called mini xenon, is used. It helps reduce the size and power consumption, without decrease in effectiveness (35W metal – hallide has the same level of brightness as 180W halogen bulb). Miniaturization of the bulb also allows for placing the video processor in the same casing. The camera is a 1/3”, 1Lux CCD. The processor allows for freezing of two or four images, that can be then displayed on the screen simultaneously or in turns. It also alows recording a short video. Technical Data: Bulb power: 35W (XV-3001-350-50W) Color temperature: 5 500 ~ 6 000 K (4 300 K – Option) Shutter: up to 1 / 1 000 000 sec Sensitivity: 2 Lux / F 1,4 Matrix: 1/3” Functions: White balance (with a button), Anty-Moire Filter, Image Freeze Video output: Video coaxial, S-Video, USB System: Pal, NTSC Power consumption: max. 112,5W Dimensions (mm): 210 (width) x 205 (depth) x 70 (height)
