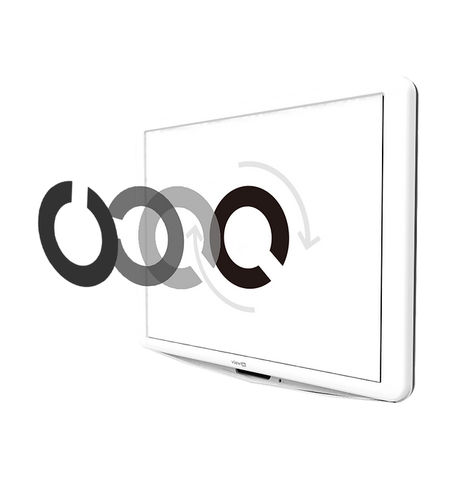

Remote-controlled chart monitor VLC-1900

VLC-1900 provides various charts with differently order opto-types with Number, Alphabetic letters, Landolt, Shellen, Children opto-types in order to protect the memorizing the order of opto-types by patients. Slide function In order to concentrate children’s patient, VLC-1900 provides slide animation functions. Also it shows number of ophthalmic symptoms with prescriptions, when the chart is not used for period of time. Adjusting viewing distance Viewing distance can be adjustsed in accordance to the space of the test room. Viewing distance is selectable by 0.25M step within 1.5M(Min) ~ 6M(Max) Sophisticated soft design White Curved soft design can be placed in any test room. SPECIFICATIONS LCD Type 19inch(SXGA) TFT LCD Resolution 1280 X 1024 pixels Chart window size (H) 300 X (W) 375mm Brightness 80 ~ 250 cd / ㎡ (10 - Level variable) Chart Available Snellen, Landolt, English, Korean, Russian, Japanese, Numeral, Children, Mask (Horizontal, Vertical, Single Optotype), Special charts (Separate Red/Green), Amsler grid, Color Blindness, Red/Green 3D, Animation, and so on. View Distance 1.5m ~ 6m (0.25M step adjustment) Memory Card mSATA(16GB) Power Source DC 12V / 5A (Power Adator) Power Consumption Less than 60VA Communication Wired : RS232 Communication Wireless : IR DA Communication
