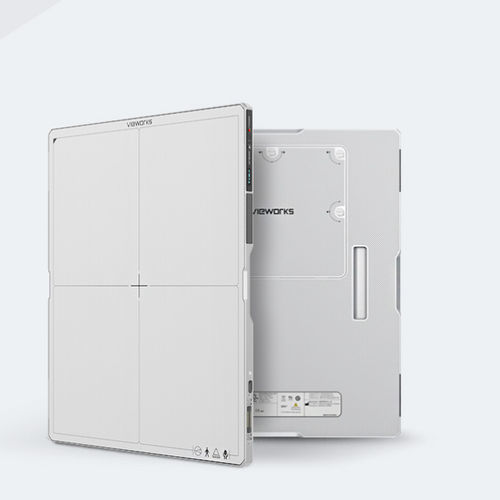

Multipurpose radiography flat panel detector VIVIX-S 3643VW

portablewireless14 x 17

Superior Image Quality High MTF & DQE Easy Upgrade Anytime™: Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance ISO 4090 : same size as a film/CR cassette Excellent Durability 1) Protects against harmful dust 2) Protects from immersion in water with a depth of up to 1 m for up to 30 min Temperature Stability: 0 degree Celsius to 40 degree Celsius Strict Reliability Test : 1) 100 cm drop-tested 2) load limit of 400kg Real Mobility Greater Portability: llight weighted (one battery: 2.95 kg or 6.5 lbs, two batteries: 3.15 kg or 6.94 lbs) and built-in handles to easy carry Convenient Charging : a variety of charging methods (standard USB-C interface, magnetic tether connector, cradle) Long Lasting Battery : up to 16 hours of long operation OLED Status Screen : easy check on battery charge level, Specifications Technology a-Si TFT Scintillator -CsI Pixel Pitch 140 ㎛ Spatial Resolution 3.5 lp/㎜ Pixel Matrix 2560 x 3072 pixels Grayscale 16 bits Image Acquisition Time 3 s Recommended Cycle Time 4 s Data Interface Gigabit Ethernet IEEE 802.11n / ac X-ray Generator Interface - DR trigger Mode AED Mode Weight 2.95 kg (one battery) / 3.15 kg (two batteries) PLUS: 3.1 kg (one battery) / 3.3 kg (two batteries) Battery Lithium Ion 3400mAh x 2 16 h (standby) * 3,000 images at a 15-second cycle. X-ray Voltage Range 40 - 150 kVp Operating Environment 0°C to 40°C 5 % to 90 % RH (non-condensing) Power Consumption - Normal: Max. 24W Charging: Max. 80W
