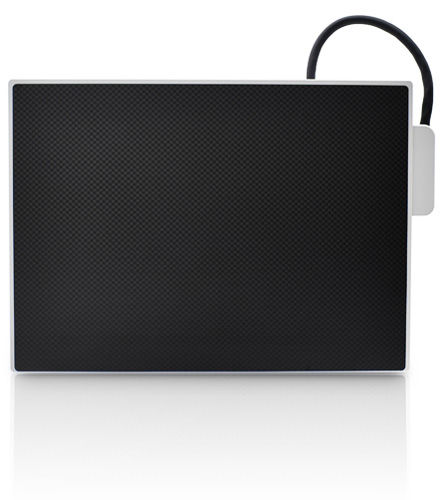

Mammography flat panel detector VIVIX-M 2430S

portable

Superior Image Quality IGZO TFT Panel High MTF & DQE Pixel Pitch : 75 ㎛ Easy Upgrade Anytime™ : Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance ISO 4090 : same size as a film/CR cassette Special Design for Conventional AEC Systems : the mechanical part is designed to use the existing system as is Thin Chest Wall Distance Bezel Size : 1.9 mm Convenient Patient Positioning Securing Active Area Easily Enhanced Workflow - Smart-W™ Optimization X-ray Window Technology : detector senses X-ray immediately and processes an image right away once x-ray exposure is finished Specificationsarrow Technology IGZO TFT Scintillator - CsI Pixel Pitch 75 ㎛ Spatial Resolution 6.7 lp/㎜ Pixel Matrix 3840 x 3072 pixels Grayscale - 16 bits Image Acquisition Time 3 s Recommended Cycle Time 15 s Data Interface Gigabit Ethernet X-ray Generator Interface AED Mode Dimensions 32.8 ㎝ x 25.5 ㎝ x 1.5 ㎝ Weight 1.2 kg Operating Environment 5℃ to 45℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 1 A
