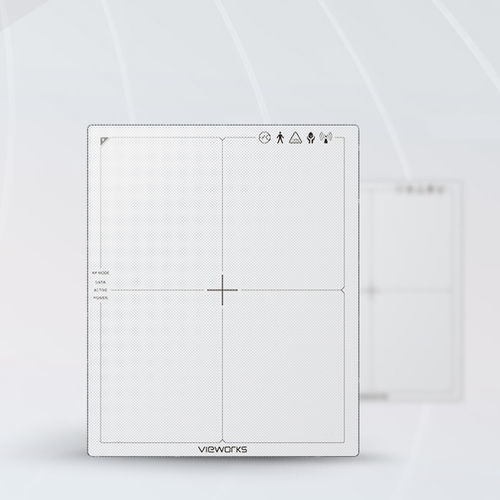

Multipurpose radiography flat panel detector VIVIX-S 1012N

portablewireless10 x 12

Superior Image Quality High MTF & DQE Pixel Pitch : 124 ㎛ Easy Upgrade Anytime™: Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance Better Usability Fast Image Acquisition Time : 1.5 s (wired) / 3 s (wireless) 1) Partially protects against harmful dust 2) Protects against direct sprays of water Specifications Technology a-Si TFT Scintillator CsI / Gadox Spatial Resolution 4.0 lp/㎜ Pixel Matrix 2048 x 2560 pixels Grayscale 16 bits Image Acquisition Time Wired: 1.5 s Wireless: 3 s Recommended Cycle Time -15 s Data Interface Gigabit EthernetIEEE 802.11n X-ray Generator Interface - DR trigger Mode AED Mode Weight Wired : 2.0 kg Wireless: 2.2 kg (including battery) Battery Lithium Ion 3100 mAh 3 h (capturing) X-ray Voltage Range 40 - 150 kVp Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 0.8 A
