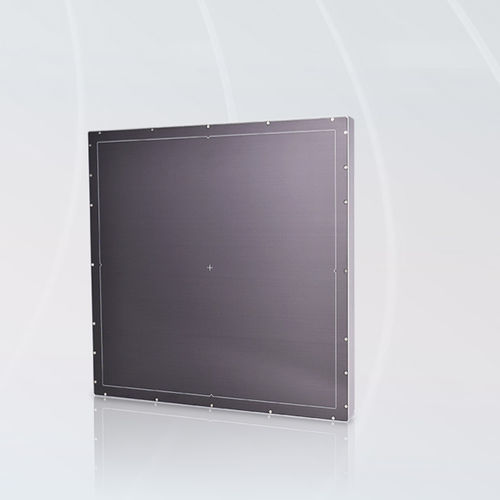

Multipurpose radiography flat panel detector VIVIX-D 1717G

for fluoroscopyportable17 x 17

Designed for RF Systems Frame Rate : 15 fps @ 1 x 1 30 fps @ 2 x 2 45 fps @ 3 x 3 Specifications Technology a-Si TFT Scintillator CsI Pixel Pitch 140 ㎛ Spatial Resolution 3.5 lp/㎜ Pixel Matrix 3072 x 3072 pixels Grayscale - 16 bits Max. Frame Rate Full size: 15 fps 2x2 binning: 20 / 30 fps 3x3 binning: 30 / 45 fps Data Interface - Dual Gigabit Ethernet Dimensions 47.1 ㎝ x 47.1 ㎝ x 3.5 ㎝ Weight 9.1 kg Boot-up Time less than 30 s Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power DC 24 V, 1.7 A
