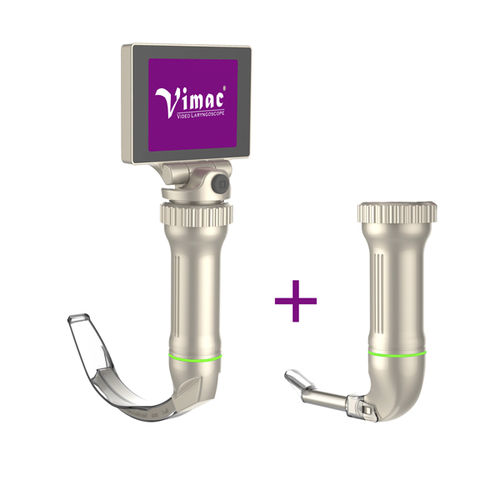

Video laryngoscope with integrated video monitor VM120

with blade

Specifications Camera Digital advanced imaging-display system: ≥1MP Field of View (FOV): 75°±10° Frame Rate: 30 fps Depth of Field: 5-100mm Battery Standard rechargeable Li-ion battery 18650 3.7 VDC / 3,400mA Operating time of fully charged batteries of 240+ min. Rechargeable ≥ 300 times Display High resolution 960 x 480 P 3-inch with tempered scratch-resistant glass Two-way rotatable: vertical ≥120°, horizontal ≥300° View Angle: typical 85° all directions Detachable Memory 32 GB internal memory Blades Disposable blades made from polycarbonate Patients Suitable for all patients Description Designed for the Chinese market at high quality standard for upper class users, also available for international market. Ergonomic design in an aluminum housing. Can be used as a “direct laryngoscope” by replacing the monitor with the “Direct Power Cap”. Handle featuring IPX7 water resistance when sealed with the “Sealing Cap”. Monitor featuring IPX2 water resistance. Mac-2 is designed for (25-60Kg) patients, Mac-3 is for (60-90Kg) patients, and Mac-4 for (≥90Kg) big & tall guys. Mac-3D is designed for difficult airway. Mac-3M is for (60-90Kg) patients, with it the intubation can be done without a stylet.
