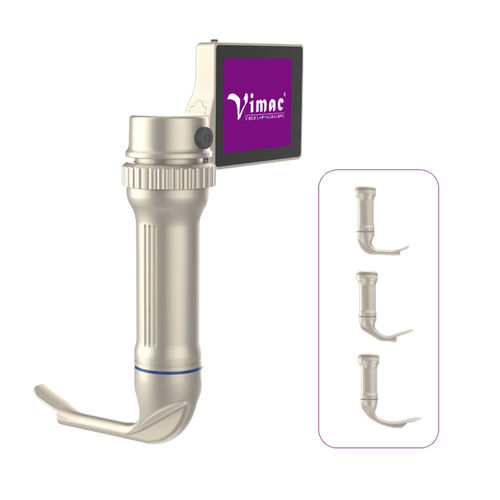

Video laryngoscope VM1101R-DM03

with integrated video monitorwith blade

Specifications Camera Standard imaging-display system: ≥1MP Field of View (FOV): 65°±10° Frame Rate: 30 fps Depth of Field: 5-100mm Battery Standard rechargeable Li-ion battery 18650 3.7 VDC / 3,400mA Operating time of fully charged batteries of 240+ min. Rechargeable ≥300 times Display High resolution 640 x 480 3-inch with tempered scratch-resistant glass Movable via 180° rotation axis View Angle: typical 85° all directions Detachable Memory 16 GB internal memory Blades Disposable blades (for VM110) & reusable blades (for VM110R-D) Patients Suitable for all patients Description A basic and cost effective model designed for the developing markets. Can be used as a “direct laryngoscope” by replacing the monitor with the “Direct Power Cap”. Handle featuring IPX7 water resistance when sealed with the “Sealing Cap”. Monitor featuring IPX2 water resistance. VM110 used with disposable blades: M-00 is for (1.5-5Kg) preterm & new born, M-0 is for (5-15Kg) pediatrics and M-1 for (15-25Kg) children. MAC-2 is for (25-60Kg) patients, MAC-3 is for (60-90Kg) patients, and MAC-4 for (≥90Kg) tall adults. MAC-3D is designed for difficult airway. VM110R used with reusable blades: RB-00 is for 1.5-5Kg preterm and newborn, RB-0D for 5-15Kg pediatrics, RB-1D for 15-25Kg children, RB-2D for 25-60Kg adults, RB-3D for 60-90Kg adults with difficult airway, RB-4 for ≧90Kg adults.
