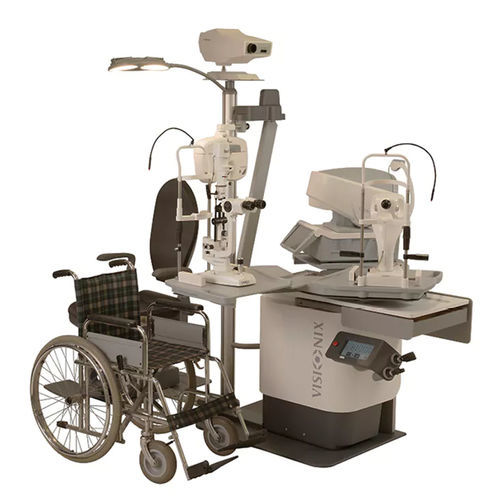

Ophthalmic workstation VX 3000

with chair

Three instruments consolidated into one unit. Each device is mounted on a surface that can be manually rotated, making it more accessible for patients in a wheelchair. Operational Available in right or left handed version Table for 3 instruments with manual rotation Manual sliding working position Electro mechanic system Locking system for table in any position Console With touch screen control panel Integrated Column Column with adjustable led lamp and projector support plate Chair Electric elevation chair Reclining back rest Removable arm rest and foot rest Features Dimensions 1600 X 1750 mm Weight 250 Kg (551 lbs) Table up and down for the VX3000H model Height VX 3000 Height of the Table: 890 mm VX 3000 H Height of the table version: H 740 – 890 mm Maximum weight for the table External position / Internal positions 30 Kg (66 lbs) Internal position 25 Kg (55 lbs) Maximum weight for the chair 135 Kg (297 lbs) Voltage 230Vac 50 Hz (230Vac 60Hz – 110Vac 60Hz) Working table voltage Instrument 1 = 12 V Instrument 2 = 220 V Instrument 3 = 220 V Standards ISO 9001:2008 – ISO 13485:2012
