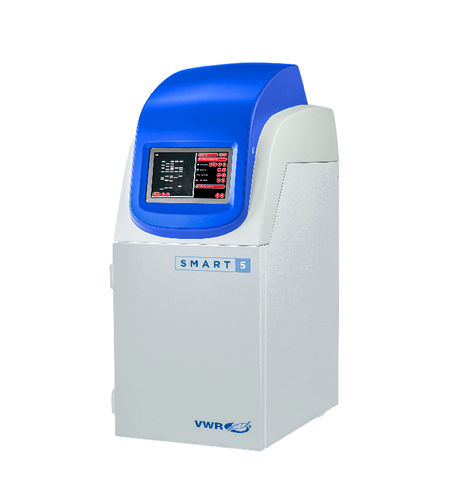

UV fluorescence gel documentation system SMART5

for DNAfor proteinswith integrated camera

SMART5 is a new generation of low cost, integrated imaging system for DNA and protein analysis, also gel documentation. Compact workstation Complete with built-in processor, touch screen and SMART5 software Motor-driven zoom lens 5 MP camera Complete networking connectivity (optional) SMART5 is the ultimate in compact gel documentation workstations. Using a choice of UV, blue or white lighting options, you can capture and edit images of fluorescent ethidium bromide, SYBR® Safe or GelGreen™ DNA gels and protein gels stained with Coomassie Blue at the workstation. For an entry level system, the SMART5 comes with a ground breaking 5 MP CCD camera giving superb pixel resolution and unrivalled sensitivity. SMART5 offers a maximum viewing area of 20×24 cm which is very large for such a small, compact unit. Delivery information: Complete system includes 5 MP camera with motor-driven zoom lens f1.2; epi white light for sample positioning; UV032 filter; image capture and GeneTools analysis software. Transilluminator and converter screens not supplied (available separately). SPECIFICATIONS Camera 5 MP, 12/16 bit CCD Dynamic range 3,6/4,8 (extended) Filters UV032 Image area 200×240 mm Lens 8 - 48 mm f/1,2 Display7" (17,8 cm) touch screen Software GeneTools W×D×H 310×450×750 mm Weight 20 kg
