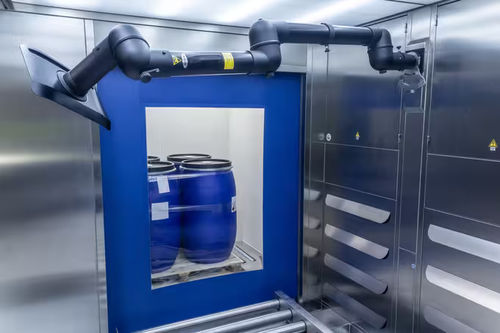

Clean room transfer hatch WIBOclean

with HEPA filter

The ventilated WIBOclean material airlocks are used to transfer products and containers to and from the cleanroom area with low contamination. The solutions range from small airlocks for manual transfer to material airlocks with an automated roller conveyor system. Depending on the application, the WIBOclean material airlocks can be operated with negative or positive pressure, thus preventing the transfer of contaminants between the gray room and the clean room. The targeted laminar air flow ensures that the inserted material is surrounded by HEPA-filtered clean air. The downflow ensures that airborne particles or gases are directed into the extraction system. The flushing time and the subsequent recovery time can be set individually.  Program sequence, pressure monitoring and locking of the airlock are regulated by the integrated control system. It can be operated either via push-button or display. Emergency open buttons stop the program and unlock the doors. The WIBOclean material airlocks can be equipped with roller shutters, lifting gates or door elements with viewing windows to the gray and clean room. The material airlocks have a hygienic design and are easy to clean. Can be integrated into existing cleanroom designs Customized solution GMP/FDA-compliant design Cleanliness class 5- 8 according to DIN EN ISO 14644-1 Freely adjustable cleaning cycles and airlock functions Stand-alone ventilation system or with supply and exhaust air Also available as an explosion-proof version The WIBOclean material airlocks work with laminar displacement flow. HEPA-filtered air is fed into the airlock area via the hood.
