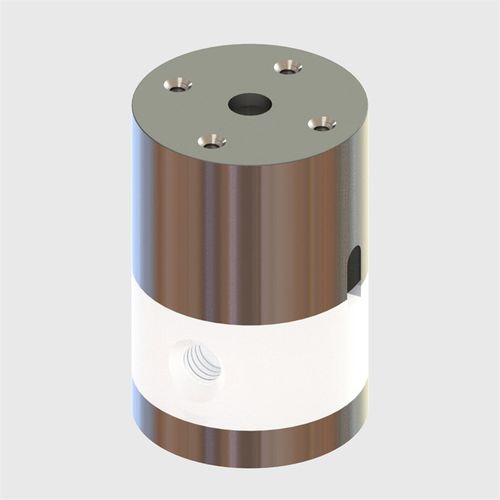

Medical valve E-V-220010gassolenoidPTFE
Add to favorites
Compare this product
Characteristics
- Applications
- medical, gas
- Technology
- solenoid
- Material
- PTFE
Description
2 Way Isolation Valve, Normally Open, PTFE Seal, 0.093" Orifice Effective Size, 18" Wire Leads, 1/4-28 UNF Female Thread (x2), 24 VDC
Extended Description
A miniature solenoid operated 2 way normally open 24 VDC isolation valve with 1/4-28 UNF
female thread (x2), PTFE seals and 18" wire leads. Orifice effective area 0.093"
Mounting Style
Threaded
Connection 1
1/4-28 UNF Female Thread
Connection 2
1/4-28 UNF Female Thread
Recommended Filtration
To suit application and media used
Media Temperature
-17°C – 70°C (0°F – 158°F)
Wetted Materials
PTFE
Flow Rate
38 LPM (Air @ 30 psi)
Operating Pressure
2.07 bar (30 PSI)
Item Weight
0.4
ROHS Compliant
Yes
Regulatory Information
California Proposition 65
