Medical valve E-N-190076polycarbonate
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Material
- polycarbonate
Description

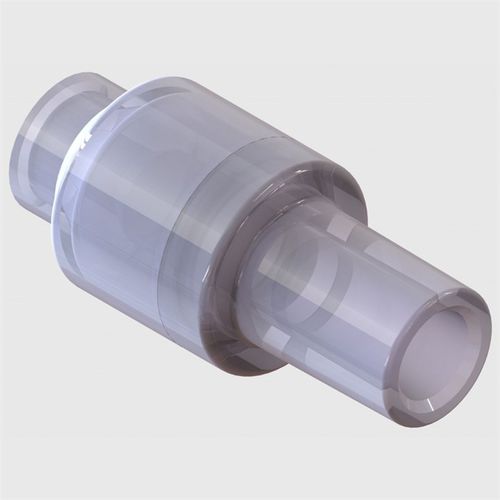

Straight Swabable Needle Free Transfer Valve, Clear Polycarbonate
Extended Description
A Clear Polycarbonate bodied straight swabable transfer valve that can be accessed with a standard catheter-tipped syringe. Typically used in biopharmaceutical and drainage applications involving large volumes and/or viscous fluids.
Ambient Temperature
0°C – 121°C (32°F – 250°F)
Mounting Style
In-line
Connection 1
Transfer Valve Cap for Slip Luer (Catheter Tip)
Connection 2
Transfer Valve Base for Slip Luer (Catheter Tip)
Recommended Filtration
Not Applicable
Media Temperature
0°C – 121°C (32°F – 250°F)
Non-Wetted Materials
Not Applicable
Wetted Materials
Clear Polycarbonate, Clear Silicone
Cleanroom Manufactured
No
Max. Inlet Pressure
2.07 Bar (30 psi)
Cracking Pressure
Valve Opened by Luer Connection
Item Weight
0.0077Kg (0.273oz)
ROHS CompliantYes
