Medical device connector E-F-220049

stainless steel

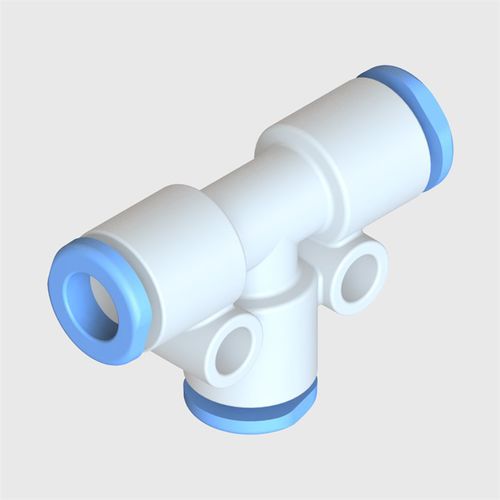

Oxygen Compatible Nylon Equal Tee Connector, EPDM-N Seal, 6.0mm OD Push-In Fitting (x3) Extended Description A Oxygen Compatible Nylon tee push-in connector with EPDM seals and 6.0mm OD push-in fitting (x3) Ambient Temperature -20°C – 100°C (-4°F – 212°F) Mounting Style In-Line Connection 1 Push-In Fitting to suit 6.0mm OD Tube Connection 3 Push-In Fitting to suit 6.0mm OD Tube Connection 2 Push-In Fitting to suit 6.0mm OD Tube Media Temperature -20°C – 100°C (-4°F – 212°F) Non-Wetted Materials 301 Stainless Steel, Nylon Wetted Materials Nylon, EPDM Max. Inlet Pressure 16 bar (232 psi) Operating Pressure 16 bar (232 psi) Item Weight 0.0065 ROHS Compliant Yes Regulatory Information ISO 15001, CGA G4.1, ASTM G93-03 B REACH Compliant Yes Other Technical Data This product is designed for life science market, particularity for medical and analytical applications. Long lasting solution and high level of sealing. Compatible with fluids, gases and clean air. This product meets with respiratory regulations, non-volatile residue equal to or less than 550 mg/m² cleanliness. Manufactured in Class 7 (10,000) cleanroom available.
