Medical device connector E-F-210442brassflexible
Add to favorites
Compare this product
Characteristics
- Applications
- for medical devices
- Other characteristics
- flexible, brass
Description

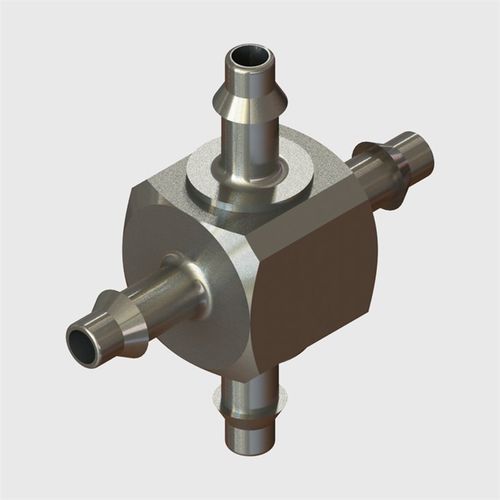

Nickel Plated Brass Equal Cross Connector, 1/16" (1.6mm) ID Tube (x4)
Extended Description
A Nickel Plated Brass cross connector with rigid barbs to suit 1/16" (1.6mm) ID tube (x4)
Ambient Temperature
0 - 60°C (32 - 140°F)
Mounting Style
In-Line
Connection 1
To suit 1/16" (1.6mm) ID Tube
Connection 3
To suit 1/16" (1.6mm) ID Tube
Connection 2
To suit 1/16" (1.6mm) ID Tube
Connection 4
To suit 1/16" (1.6mm) ID Tube
Recommended Filtration
To suit application and media used
Media Temperature
0 - 60°C (32 - 140°F)
Non-Wetted Materials
Nickel Plated Brass
Wetted Materials
Nickel Plated Brass
Max. Inlet Pressure
10.34 Bar (150PSI)
Item Weight
0.0050
ROHS Compliant
Yes
REACH Compliant
Yes
Other Technical Data
Compatiable with pneumatic applications. The product designed for use with flexible tube and stiff tube which made with Nylon, Polyurethane, Polyethylene and Polypropylene.
