Male adapter E-F-210453

for medical devicesbrassflexible

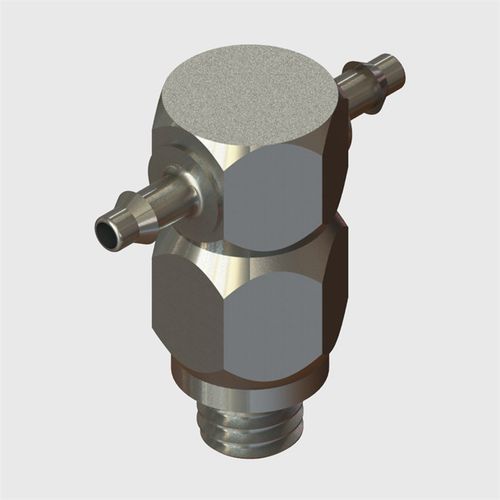

Nickel Plated Brass Swivel Tee Adapter, Buna-N Seal, 10-32 UNF Male Thread to 1/16" (1.6mm) ID Tube (x2) Extended Description A Nickel Plated Brass swivel TEE adapter with 10-32 UNF male thread and rigid barb to suit 1/16" (1.6mm) ID tube (x2) Ambient Temperature 0 - 60°C (32 - 140°F) Mounting Style Threaded Connection 1 To suit 1/16" (1.6mm) ID Tube Connection 3 To suit 1/16" (1.6mm) ID Tube Connection 2 10-32 UNF Male Thread Recommended Filtration To suit application and media used Media Temperature 0 - 60°C (32 - 140°F) Non-Wetted Materials Nickel Plated Brass Wetted Materials Nickel Plated Brass, Buna-N Max. Inlet Pressure 10.34 Bar (150PSI) Item Weight 0.0050 ROHS Compliant Yes REACH Compliant Yes Other Technical Data Compatible with pneumatic applications. The product designed for use with flexible tube and stiff tube which made with Nylon, Polyurethane, Polyethylene and Polypropylene. Buna-N gasket included, but not installed.
