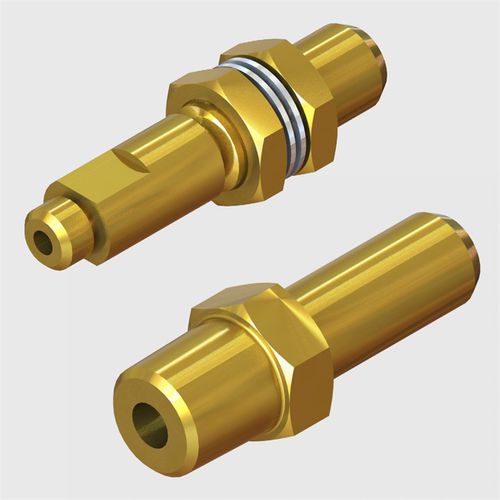

Male-female coupling E-Q-160034medicalbrass
Add to favorites
Compare this product
Characteristics
- Type
- male-female
- Applications
- medical
- Other characteristics
- brass
Description
Brass Screw Type Quick-Connect Body, 1/8-27 NPT Male Thread, Valved
Extended Description
Brass Screw Type Quick-Connect Body with shut off valve, 1/8-27 NPT male thread to 5/16-24 UNF male thread
Ambient Temperature
0°C to 82°C (32°F to 180°F)
Mounting Style
Panel Mount
Connection 1
1/8-27 NPT Male Thread
Connection 2
5/16-24 UNF Male Thread
Recommended Filtration
To suit application and media used
Media Temperature
0°C to 82°C (32°F to 180°F)
Non-Wetted Materials
Brass
Wetted Materials
Brass, Stem-Brass, Delrin®, Buna-N
Max. Inlet Pressure
21 bar (300 psi)
Operating Pressure
0 to 21 bar (0 to 300 psi)
Min Inlet Pressure
0 bar (0 psi)
Item Weight
0.0140Kg (14g)
ROHS Compliant
Yes
REACH Compliant
Yes
