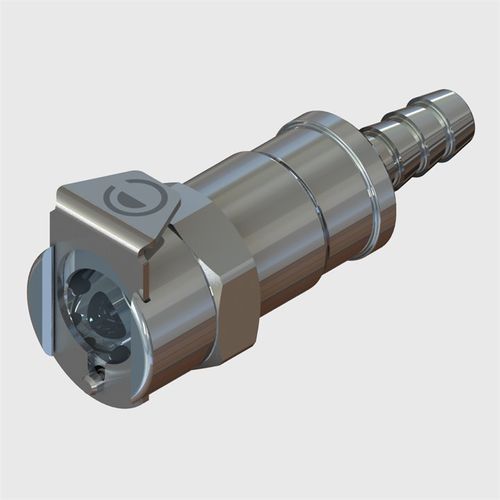

Medical coupling E-Q4V-SB-3-SS-V

stainless steelplastic

Description316 Stainless Steel Socket Coupling, Viton Seal, 1/4" (6.4mm) ID Tube, Valved, 1/4" Flow - Q4 Series Extended Description 1/4" flow size to 1/4" (6.4mm) ID hose barb socket coupling in 316 Stainless Steel, which is more durable and can withstand higher pressure than its plastic equivalent. For connection with metal audible click thumb-latch connection to mating plug connector, valved Ambient Temperature 0°C to 70°C (32°F to 160°F) Mounting Style In-Line Connection 1 To mating Q4 Plug Connector Connection 2 To suit 1/4" (6.4mm) ID Tube Recommended Filtration To suit application and media used Media Temperature 0°C to 71°C (32°F to 160°F) Non-Wetted Materials 316 Stainless Steel Wetted Materials 316 Stainless Steel, Viton Cleanroom Manufactured No Max. Inlet Pressure 8.3 bar (120 psi) Item Weight 0.0510 kg ROHS Compliant Yes REACH Compliant Yes
