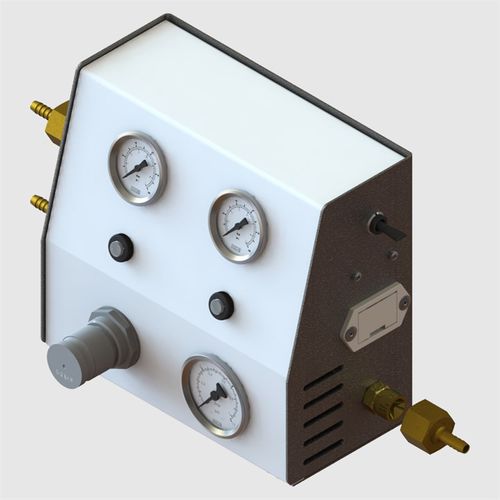

Pressure control unit NTC PC100

temperaturelaboratorywireless

0 to 100 PSI Pneuchange Unit c/w Integrated Battery Alarm Two-inlet gas cylinder automatic changeover unit providing a continuous supply of gas whilst the exhausted cylinder is replaced. The unit is designed for use with CO2 and other inert gases supplying incubators and similar laboratory equipment. The unit provides a visual indication of active input and an audible indication of changeover Ambient Temperature0°C to 50°C (32°F to 122°F) Mounting Style Flush, In-Line Connection 12 off G3/8" Male Coned R/H c/w 2 off Hosetails to suit 6.4 mm (1/4") ID Tube Connection 2G3/8" Male Coned R/H c/w Hosetail to suit 6.4 mm (1/4") ID Tube Recommended Filtration20 micron. User to supply separately (see other technical data) Media Temperature0°C to 50°C (32°F to 122°F) Non-Wetted Materials Steel (Zinc Plated, Chrome Plated), Stainless Steel, Plastic, Vinyl, Aluminium Alloy Wetted Materials Brass, Nickel Plated Brass, Steel, Polyurethane, Technopolymer, Cu-Alloy, Nylon, Nitrile Rubber, Acetal Clean Room Manufactured Controlled Environment Max. Inlet Pressure6.9 bar (100 psi) Item Weight 2.8000 (6.17lb) ROHS Compliant Yes CE Mark Yes REACH Compliant Yes This unit must only be used for CO2 and other inert gases. The regulator is a relieving type and so it is recommended that suitable ventilation is provided when the unit is operating. When setting the outlet pressure, always adjust on increasing pressure. Filters are available for incorporation into the Pneuchange inlet lines (see part number CFILT). Custom designs available.
