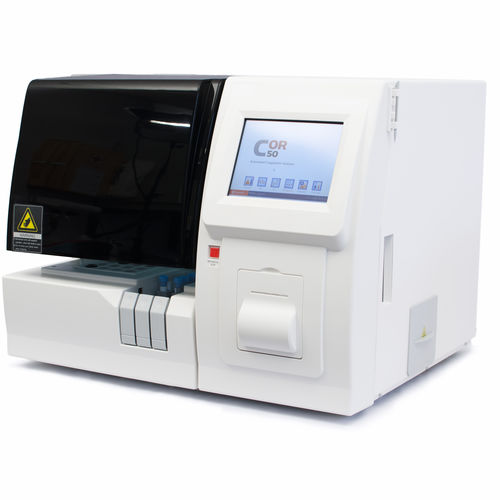

Automatic coagulation analyzer COR 50

3-channelchromogenicimmunologic

Easy to use: Touch screen, intuitive windows-based software, continuous load Low maintenance: only two consumables and less than 0.5 L/h water consumption/h Complete diagnostics: global and specialty tests, through three measurement methods: coagulometric, chromogenic and turbidimetric Integrates Hemostasis to the whole service: Bidirectional connection Main features: 3 measurement methods: coagulometric, chromogenic and Immunologic. Bidirectional data transmission Has automatic dilution, calibration and retest functions Within its multiple functions, it includes the priority processing of STAT samples (emergency) and an integrated quality control function Wide variety of reports by its built-in printer or by an external one Cups and primary tubes that can be entered by integrated barcode automatically (optional) Measurement system: Parameters: TP, APTT, TT, FIB (Fibrinogen), ATIII, D Dimer, etc. Intrinsic and extrinsic pathway factors, protein C, screening and confirmatory test for lupus anticoagulant, among others. Measurement methods: Photometric with 7 measurement channels 5 coagulometric reading channels (660 nm) 1 turbidimetric channel (575 nm) 1 chromogenic channel (405 nm) Storage: 100.000 results and 10.000 reaction curves ​QC: 12 quality control files. 10 tests per file 30 curves 12 months of storage Two QC programs: Levey Jennings (with Westgard Rules) and Limit QC Calibration: Up to 6 points. 10 items Operating modes: Automatic, random access Reaction rack: On-board cuvettes: 72 Reaction temperature: 37 ± 0.5 ° C
