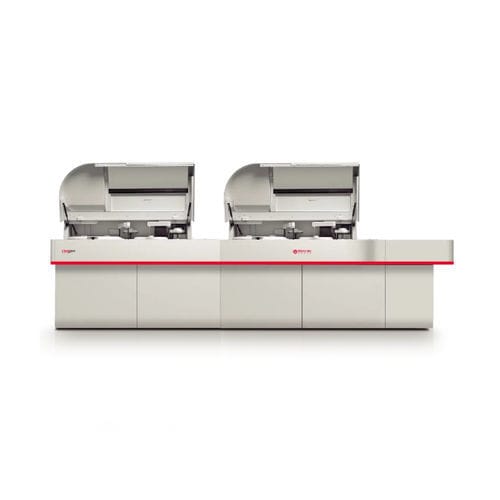

Automatic clinical chemistry analyzer CMD 800 X2

for clinical diagnosticbenchtopwith ISE

High efficiency Innovative Cost effective: low reagent consumption and long electrode life Reliable results Easy maintenance Main features: CMD 800i X2: 1600 photometric tests + 400 ISE o 1600 photometric tests + 800 ISE Measuring system: Methodology: Reaction volume: 100 - 360 µL Process temperature: 37ºC with fluctuation of 0.1ºC Light source: tungsten halogen lamp Photometer: reverse optics. Photometry Wavelength: 340nm, 380nm, 412nm, 450nm, 505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm Absorbance range: 0 - 3,400 Abs (10mm conversion) ISE System (opcional): Determination of sodium, potassium and chlorine by indirect potentiometry, 22 µL of sample Quality control and Calibration: Calibration mode: linear (one point, two points and multi point), logit-log 4P, logit-log 5P, spline, exponential, polinomium, parabola Quality control rules: Westgard rules, Levy-Jennings charts, twin plot Sampling system: SDM: 300 samples in 30 racks Sample probe: Liquid level detection, clot detection and collision protection Reagent system: Reagent probe: liquid level detection, bubble detection and collision protection Barcode scanner (optional): Used for sample and reagent Applicable for several barcode systems including Codabar, ITF (Interleaved Two of Five), Code 128, Code 39, UPC / EAN, Code 93 Useful for communicating with LIS in bidirectional mode
