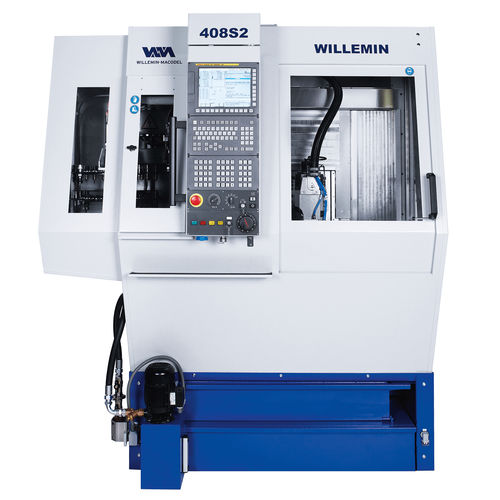

CAD/CAM milling machine 408S2

dentalfor medical device manufacturing5-axis

The 408S2 is a machining center with 5 simultaneous axes designed for machining complex prismatic parts within a cube with a side length of 80 mm. It is equipped with a vertical powered spindle with movement along three orthogonal axes and two direct drive stacked rotational axes. This ultra high-precision dual divider is capable of handling milling operations with great angular resolution and turning operations on the C-axis up to 4,000 rpm. The machining center can be fitted with a diverse range of clamping devices for working from slugs and different pallet standards. Benefiting from the latest technological developments and Willemin-Macodel's comprehensive expertise in high-precision machining, the 408S2 machining center is perfect for cutting-edge industries such as watchmaking, medical, aerospace and precision contract machining. Direct drive dual divider with 0 180 mm plate Fanuc 31 i-B5 PLUS iHMI PRO CN control panel, 15" screen with Integrated PC. Also available with Heidenhain TNC 640 numerical control 48-position tool magazine with quick changer (72 or 96 positions optional). Tool breakage detection in masked time Various automation systems, loading or unloading workpieces or pallets (can be adapted on the right-hand side of the machine) Swarf and cutting fluid recovery tray (swarf tray with drawer, recovery of precious metals or conveyor optional)
