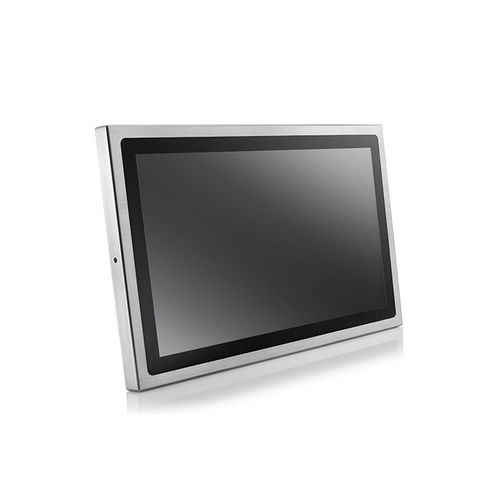

Intel® Celeron® J6412 medical panel PC WTP-8J66-22

for healthcare facilitiesall-in-one21.5"

Support Win10 / Win11 IP66/67/69K Full Sealed Enclosure Brightness Control by OS Optional IP67 M12 Stainless Connectors Optional Cable Gland for External I.O. Customization Floor Stand Kits CE, FCC, VCCI Class B Certified Mechanical and Environmental Power input DC 12V~28V Power Adapter AC 100~277V / 47 ~ 63 Hz / DC output 24V, 120W (IP68 PSU w/ PSE) Power Consumption TBD W Temperature Operating Temperature 0~40℃ (24V DC, IEC60068-2-56, HDD) 0~50℃ (24V DC, IEC60068-2-56, SSD) Storage Temperature -20~60℃ Humidity Operating & Storage:10 ~ 90%, non-condensing IP Rating / Housing IP66 / NEMA4X / IP69K whole set / IK05 / stainless steel (SUS304), chassis type Dimensions (Net) 557 mm (H) x 348.5 mm (V) x 58.5 mm (T) Weights (Net) 12 kg Mounting VESA 100/100, side mount (M6*2) Certification CE (EMC) FCC Class B, Canada ICES-003 VCCI Class B Options 1. Wireless LAN or Wireless and BT kit (Easy Clean and Robust Antenna) 2. Cable Gland for External I.O. 3. External LAN x 2 (Occupy 1 x COM) 4. Full Flat PCT Touch Screen IP69K 5. Stainless M12 connector 6. SUS316 Enclosure 7. IP67 8. M12 (female) to M12 (male) DC power extension cable (2 meters length) 9. M12 (female) to stripped and tinned wires DC extension cable (1.2 meter length) Major Options Options 1. Wireless LAN or Wireless and BT kit (Easy Clean and Robust Antenna) 2. Cable Gland for External I.O. 3. External LAN x 2 (Occupy 1 x COM) 4. Full Flat PCT Touch Screen IP69K 5. Stainless M12 connector 6. SUS316 Enclosure 7. IP67 8. M12 (female) to M12 (male) DC power extension cable (2 meters length) 9. M12 (female) to stripped and tinned wires DC extension cable (1.2 meter length)
