Medical gas pressure regulator 386NGA
laboratorymedical

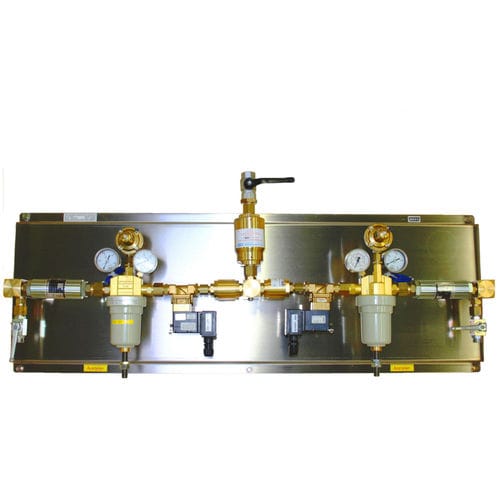

Medical gas pressure regulator - 386NGA - WITT - laboratory / medical

Add to favorites

Compare this product

Characteristics

Fluid type: medical gas
Applications: laboratory, medical
Flow: 30 m³/h
(1,059.44 ft³/h)
Inlet pressure: 2 bar, 4 bar, 10 bar, 18 bar
(29 psi, 58 psi, 145 psi, 261.1 psi)
Output pressure: 0.5 bar, 1 bar, 1.2 bar, 1.5 bar
(7.3 psi, 14.5 psi, 17.4 psi, 21.8 psi)
Height: 460 mm
(18.1 in)
Weight: 50 kg
(110.2 lb)
Width: 1,330 mm
(52.4 in)
Depth: 250 mm
(9.8 in)

Description

minimises the risk of accidents and increases the work space ensures continuous gas supply and control of a pipeline in accordance with current technical regulations and norms conforms to DIN EN ISO 14114 and acetylene regulations (TRAC) incl. WITT safety equipment completely mounted and tested Benefits: pressure regulating station complete, mounted and tested quick and easy wall mounting pressure regulating station according to EN ISO 14114 pressure regulator according to EN ISO 7291 reduces the risk of accidents and creates more working space automatic changeover using solenoid valves in the outlet, controlled by WITT-SWITCH (optional) Operation / Usage: The pressure regulating station automatically ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents. A supply by single cylinders is not available. Assembly: 2x1 pressure regulating station 386NGA, fully automated changeovers consisting of: 2x high pressure ball valves 2x automatic quick acting shut-off devices HDS17 according to EN ISO 15615 2x pressure regulator and gauge with contacts 2x solenoid valves 230 V Ex 2x check valve 1x safety device 85-30 according to EN730-1 against back flow and flashback 1x ball valve in the outlet G 3/4 F completely mounted and tested on stainless steel plate for connection with WITT control unit (WITT-SWITCH)
