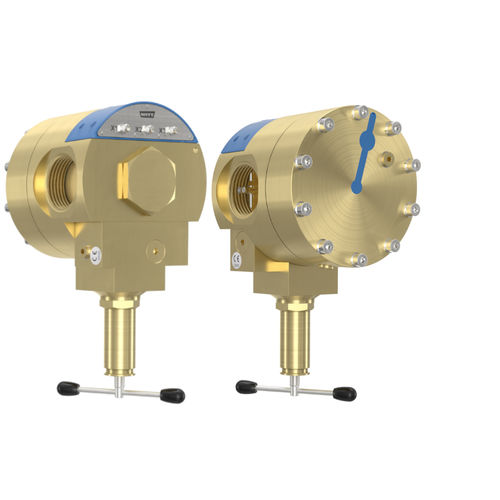

Medical gas pressure regulator 757LE/S SMART

laboratorymedicalintegrated

High performance dome-loaded pressure regulator set for inline installation,combined with high-tech sensor technology and electronic components. The dome pressure regulator 757LE/S SMART can signal, for example, pressures, temperatures and an indication of the flow rate. These signals can be used to optimize performance, safety and maintenance regimes. WITT dome pressure regulator technology is unique in the world as it offers maximum pressure constancy even at high and fluctuating flow rates or with small differences between inlet and outlet pressure. Now the dome pressure regulator 757LE/S is also available with smart functions: Important operating parameters can be displayed via 4-20 mA signals, enabling the gas supply to be monitored and optimised. Continuous data logging enables quality control and is an important step towards networked production. Features of WITT dome pressure regulator technology The extraordinary pressure constancy of WITT dome pressure regulators is the result of a complex technology consisting of perfectly matched components: Pilot Control Tube (PCT): One of the features enabling highly accurate control of outlet pressure Balanced Seat Design (BSD): Further enabling control precision, high reliability and low maintenance A complete solution, ready to use: With integrated pilot pressure regulator, completely assembled and tested Own-medium controlled: Enabling autonomous operation (no separate gas supply required) Closed system: Self-relieving design, but no gas is released to atmosphere
