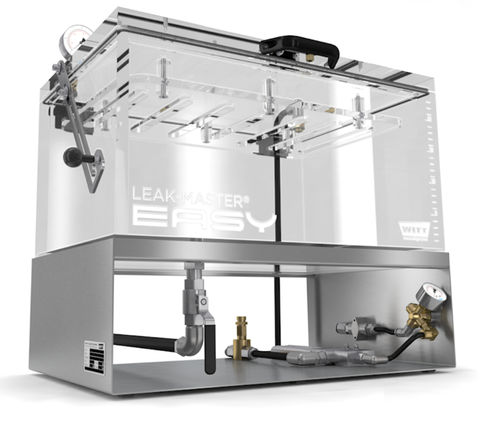

Gas leak detector LEAK-MASTER® EASY

for medical devicesfor the pharmaceutical industrybenchtop

Package Leak Detection / Leak Testing system using a water-based bubble leak test. LEAK-MASTER® EASY allows the detection even of the smallest of leaks in packages and a seal integrity test. After the package is placed into the test chamber filled with water, the head space above the water level is evacuated. This is done with the help of a compressed air operated Venturi nozzle (optionally also with electric vacuum pump). Thus, the package immersed in the water inflates, allowing any leaks and their location to be identified by a stream of bubbles. Benefits: economical and uncomplicated leak test / leak detection of packages visual inspection allows localisation of the leak seal integrity test for all flexible and rigid kinds of packaging (modified atmosphere, food-, pharmaceutical-, industrial- and other packaging) short leak testing period (< 30 sec.) easy-to-use intuitive operation – no special skills required easy installation and start-up no trace gas required in package can also be used for altitude simulation optionally also for vacuum packaging, set order-No. 956992700 no calibration required various chamber sizes available low maintenance easy to clean acrylic glass housing standard with compressedair driven Venturi nozzle (without electrical connections) optionally with electrical vacuum pump ASTM D3078, ASTM D4169, ASTM D4991, ASTM D5094 standard Accessories: Control unit PLUS: portable controller with various predefined measurement programmes, also for documentation of your measuring results Vacuum testing set: for testing vacuum packaged products and products with low gas volumes
