Medical gas pressure regulator 150NF

laboratorymedicaladjustable-flow

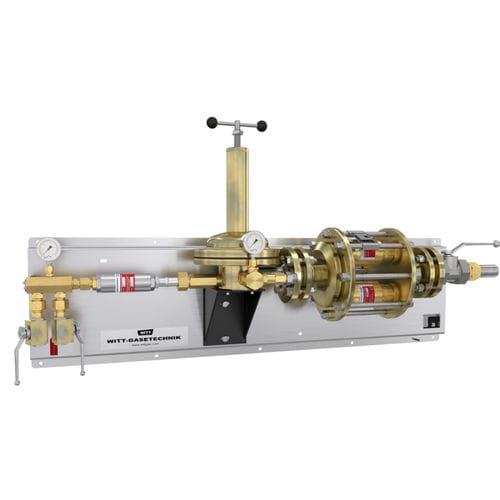

WITT Pressure regulating station manually changeable 2x1 for central gas supplies. Every pressure regulating station 100% tested. Benefits: pressure regulating station complete, mounted and tested quick and easy wall mounting robust design suitable for connection with cylinders or bundles pressure regulating station according to EN ISO 14114 pressure regulator according to EN ISO 7291 version including safety group 645, 2x or 4x with parallel safety device 85-30 extremely low pressure drop (Δp) provides optimal draining of the manifold or bundle Operation / Usage: The pessure regulating station ensures a continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents. Assembly: 2x1 pressure regulating station 150N manually changeable consisting of: 2x 2/2-way-high pressure ball valves 1x Automatic Quick Acting Shut-Off Device HDS17 according to EN ISO 15615 1x pressure regulator ADR 150 with blow off valve 1x safety group 645 with safety device 85-30 (depending on version with 2x or 4x parallel) 1x ball valve with flange in outlet completely mounted and tested on stainless steel plate Options: flexible hose standards (BAM certified) for connection of pressure regulating station with gas supply (cylinder, gas cylinder manifolds, bundles, ...), adapter suitable for bundle connection gauge with contacts manifold for connection of cylinder bundles with pressure regulating station
