fixed installation or for installation on mobile packs / bundles
minimises the risk of accidents
ensures continuous gas supply and control of a pipeline in accordance with current technical regulations and norms
compact and robust
completely mounted and tested
Benefits:
pressure regulating station completely mounted and tested
stationary or to fit on bundles
quick and easy wall mounting
compact robust design
suitable for connection with bundles
pressure regulator according to DIN EN ISO 7291
Operation / Usage:
The pressure regulating station ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents.
A supply by single cylinders is not available.
Assembly:

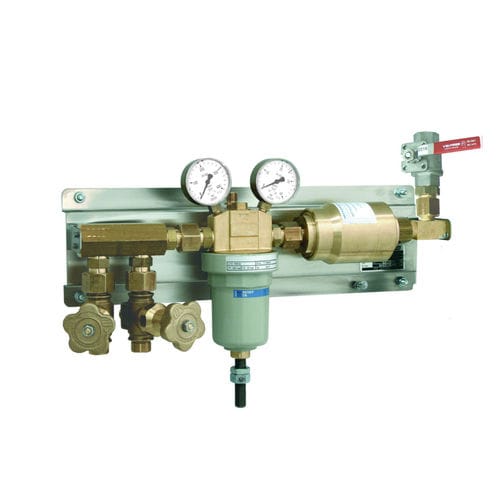

1x1 pressure regulating station 386NPL
2x1 pressure regulating station 386NPL manually changeable
maximally available up to 3x1 (on request)
consisting of:
high pressure gate valve 1x or 2x dependant on option
1x pressure regulator with blow off valve
1x ball valve in the outlet
complete mounted and tested on stainless steel plate
Options:
flush valve
second outlet and/or up to 60 bar outlet pressure (special equipment)
flexible hose standards for connection of pressure regulating station with gas supply (cylinder, gas cylinder manifolds, bundles, ...), adapter suitable for bundle connections
screw connection for pipe (soldering end, WITTFIX, welding end)
pressure gauge with contacts
safety device 85-30 according to DIN EN ISO 5175-1 against gas backflow and flashback
