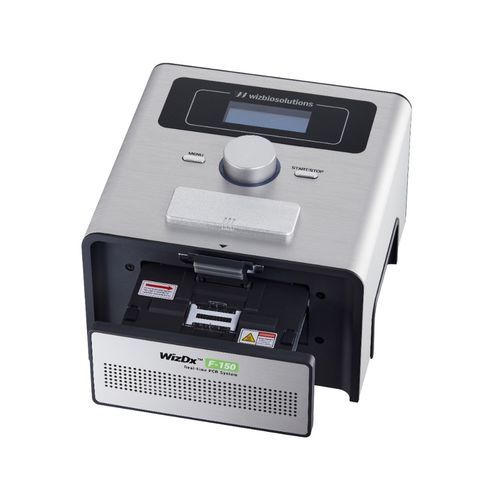

Real-time PCR system WizDx™ F-150

digitalfluorescencecompact

WizDx™ F-150 adopted a special polymer chip (WizDx™ PCR Chip) which enables even faster thermal treatment of samples in it than the case of using conventional PCR tubes. The thermal cycling mechanism of WizDx™ F-150 achieves 8°C/sec ramping rate for both heating and cooling. The integrated camera module of WizDx™ F-150 fully monitors and records the fluorescence signal of each sample and the recorded fluorescence values are processed and displayed by WizDx Recorder software. Using this unique data analysis method, WizDx™ F-150 is providing very precise results of reaction comparing to conventional real-time PCR instruments in the market which collect fluorescence data through optical scanning method. User interface of WizDx™ F-150 was designed to make general real-time PCR instrument users easily operate this innovative instrument. WizDx Recoder provides amplification curves, melting curves, and melting peaks for easy analysis. WizDx™ F-150 requires no user’s calibration for users to hassle with. Overview •Innovative & Compact Design for Laboratory + POCT applications •Conventional & REverse Transcriptase (RT) PCR in a Single device. •Intuitive Control with LED indicated and Jog-Dial & LCD Display •Real-time detection through dedicated software, WizDx Recorder Features Thermal Cycler Heating and cooling method - Peltier Ramping Rate - 8.0 °C/sec Optical Detection & Scan Method of Detection - Digitized Fluorescence Signal Comparison Type of Excitation - High Brightness LED Wavelength - 465nm ± 10nm Number of Detection Channel - 1 Method of Fluorescence Measurement - Integrated Camera Module Accuracy - ± 0.5˚C Uniformity - ± 0.5˚C (well to well) Stability - ± 0.5˚C
