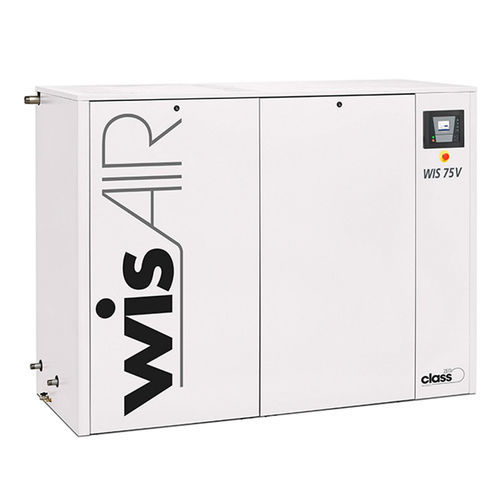

Medical air compressor WisAIR
stationaryoil-freelubricated

Medical air compressor - WisAIR - Worthington Creyssensac - stationary / oil-free / lubricated
Medical air compressor - WisAIR - Worthington Creyssensac - stationary / oil-free / lubricated
Medical air compressor - WisAIR - Worthington Creyssensac - stationary / oil-free / lubricated - image - 2
Add to favorites
Compare this product


Characteristics

Applications
medical
Configuration
stationary
Options and accessories
oil-free, lubricated
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 7.5 bar
(108.78 psi)

Flow

Max.: 504 m³/h
(17,798.59 ft³/h)

Min.: 78.17 m³/h
(2,760.55 ft³/h)

Power

Max.: 55 kW
(74.78 hp)

Min.: 15 kW
(20.39 hp)

Noise level

Max.: 72 dB

Min.: 67 dB

Length

1,976 mm, 2,435 mm
(77.8 in, 95.9 in)

Width

965 mm, 974 mm
(38 in, 38.3 in)

Height

1,500 mm, 1,840 mm
(59.1 in, 72.4 in)

Description

The oil-free WISAIR compressors offer superior quality compressed air for a large number of industrial applications. The continued investment in product development makes low operation costs and ecological compressors possible. The range is composed of three pillars that allows you to clearly differentiate between them Oil-free quality air Extremely clean air Integrated air dryer (optional) to improve the air quality and protect the air system against corrosion Energy efficiency The most energy efficient compression Integrated varialbe speed technology Direct driven possibilities Exceptional reliability Friction-free hydrodynamic ball bearings, lubricated with clean water. Robust materials that exclude all risk of corrosion WISAIR oil free compressors Pharmaceutical, food and beverage industries as well as the electronic and textile sectors cannot have the risk of oil contamination in their processes. For this reason, it is essential that the compressed air is 100% oil-free. The standard used is ISO 8573-1 (2010), in which Class 0 means the highest air purity. It is the only way to guarantee oil-free air for your critical processes, and have peace of mind. Exceptional reliability, low maintenance and exploitation costs make the oil-free compressors lucrative investments. Air flow: from 78 to 504 m³/h Max. pressure: from 7 to 12.5 bar Available versions in this range: - WIS 20V - WIS 25V - WIS 30V - WIS 40V - WIS 50V - WIS 75V - WIS 40 - WIS 50 - WIS 60 - WIS 75 Available options in this range: - Over-supply pump - Flange entry - Anchor pads - Dryer bypass for uninterrupted production - Water stop valve - Cutter - Computer accessories
