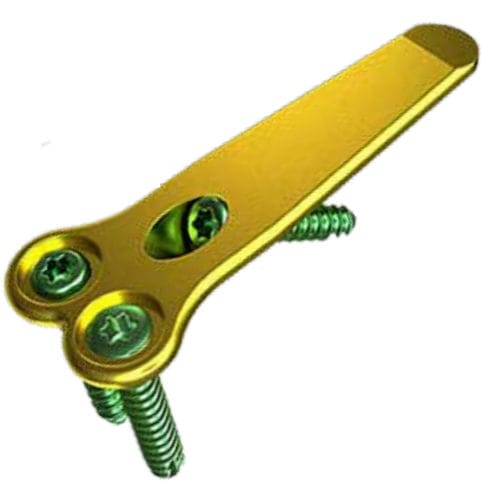

Hallux valgus arthrodesis plate MAXLOCK™ EXTREME™

distalproximallocking

MINI MAXLOCK EXTREME™ Small Plate and Screw System KEY FEATURES • Provides surgeon the ability to address more severe hallux valgus deformities with a distal Chevron/Austin osteotomy • ISO (Intraosseous Sliding Osteotomy) Plate with POCKETLOCK™ Technology combines bending strength and rotational control of a plate with the compression generation of an inter-fragmentary screw • This technique uses the pocket of the plates to direct the interfragmentary fixation screw into the proximal metatarsal. SPECIFICATIONS • Plate is 1.3mm thick • Plate is 32mm long and 12mm wide (at widest part) • Blade is 7.6mm wide (at widest part) • Pocket hole is angled at 40º with respect to the blade • The width of the Intraosseous blade at the tip is 5.2mm and gradually tapers out to 7.22mm wide toward the pocket. • Compatible with all existing Mini MaxLock Extreme screws and instrumentation, including the mini variable angle locking system. Catalog # Description MXM-011-24-XX 2.4mm Non-Locking Screw MXM-021-24-XX 2.4mm Fixed Angle Locking Screw MXM-072-ISO-16 1.6mm ISO™ Drill Bit MXM-065 Plate Inserter MXM-065-02 Plate Threaded Insert MXM-065-ISO Plate Inserter Insert MXM-074-ISO Pocket Countersink MXM-085-ISO Plate Broach MXM-171-ISO Pocket Drill Guide Tip MXM-071-ISO Pocket Guide
