Medical electrode

EEGEMGfor EOG

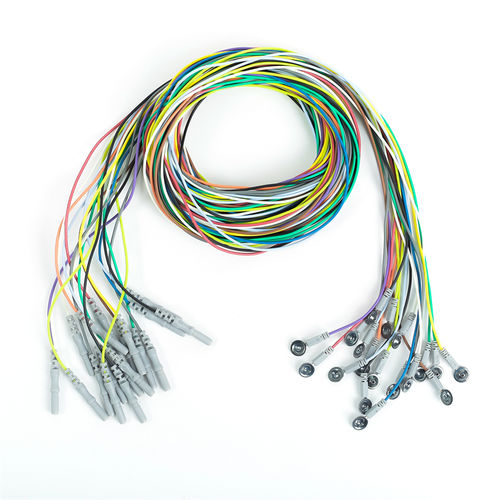

Reusable high quality pure silver coated with silver chloride (AgCl) EEG cup electrodes designed to provide effectiveness, ease of use and reliable signals every time. Greentek’s reusable EEG disc electrodes have a 10 mm silver disc coated with silver chloride (AgCl). They have a multi-colored super-flexible TPU insulated lead wire ending in standard 1.5mm touch proof connectors conforming to DIN 42 802. Silver / silver chloride electrodes (Ag/AgCI- electrodes) are not polarizable. Ag/AgCI- electrodes are chloride coated pure silver to provide stability and low noise. It has a low resistance in low frequencies, and the result is superior quality that assures reliable, accurate EEG, EMG, ECG and EOG recordings. Greentek standard reusable Ag/AgCl Cup EEG electrodes are available in the following lengths: 1.0, 1.5, 2.0 and 2.5 meters. Specifications Electrode Material Pure silver (99.9%) substrate plated silver chloride Electrode Diameter 10.0 mm, with 2.0 mm hole for application of electrode cream or gel Insulation materials Medical grade TPU Lead wire Core Kevlar and silver plated copper Cable Length 1.5m & 2.0m & 2.5m & OEM Connector 1.5mm female DIN42802 connector (touchproof ) Cable Color 12 Colors Packaging 12 pcs / PE Bag Certificate CFDA, ISO 13485, CE Features * Advanced silver/silver chloride sensor ensures uniform high signal quality * Pre-attached tangle-free lead wires * Color coded lead wires for easy handling * Reusable and non-toxic, can be reused after sterilized
