ECG patient monitor PM9000C

RESPTEMPNIBP

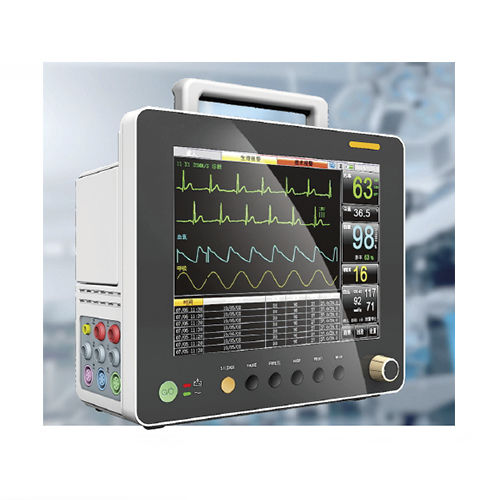

PM9000C Patient Monitor Model:PM9000C Display:12.1 inch Parameters:ECG/SPO2/NIBP/RESP/TEMP/PR Suitable for bedside,operation room,ICU etc PM9000C Patient Monitor 12.1'’ TFT LCD, suitable for bedside, operation room, ICU, etc Support various modules including 3/5/12 Leads ECG,RESP,SPO2, NIBP,IBP,CO2,AG etc. Multi-display:Large font, Standard,Full-ledas ,trend,oxyCRG 720h monitoring data storage Built-in detachable rechargeable lithium battery(about 4h) Support multi-language,Central Monitoring system Support Central momitonng system Support LAN.WIFI Connected to max 64 bedside units at the same time Integrated design NIBP Module adaptive inflated of storage boxFaster, more accurate High frequency ECG signal acquisition 3/5/12 Leads support.Leads off detect Sp02 measure low perfusion as low as2%o Optional: ETC02. AG. IBP Specifications ECG Mead mode: K II . III. AVR. AVL. AVF. V 2.Gain:xO.25. xo 5, xi% x2 3.Heart Rate:15-300BPM(Adult)15-350BPM(Neonatal) Resolution: 1BPM Accuracy: ±1% 4 ST measurement Range: •2.0-^2.0mV Accuracy: ±10% 5. Pacemaker: Yes 6 Sweep Speed: 12.5mm/s.25mm/s.50mm/s 7. Bandwidth:Diagnostic: 0.05 * 130 Hz Monitor0.5 *40 Hz Surgery:1 * 20 Hz SP02 1. Measure range: 0-100% 2 Resolution 1% 3. Accuracy: 2% (70-100%) 4 Pulse Rate: 20-250 BPM 5.Resolution: 1BPM 6.Accuracy: ±3BPM
