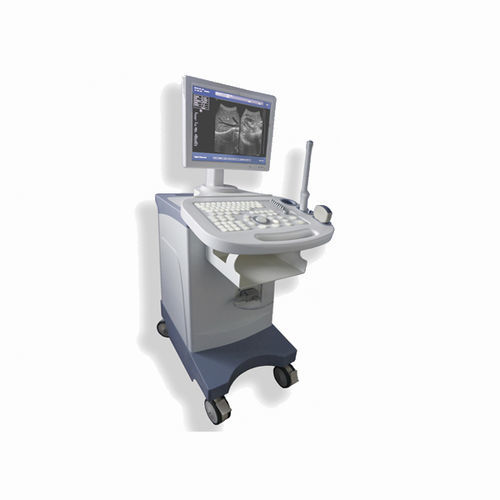

On-platform ultrasound system XF 2000

for multipurpose ultrasound imagingB/Wconvex-array

Probe automatic identification Focus - 4 segments dynamic electron focusing double encoder regulations Image processing - Variable aperture dynamic apodization Dynamic filter Edge enhancement Digital space-time filter 8γ corrections 16 pseudo colors Line correlation Frame correlation point correlation linear interpolation According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. Measurement and Note - Distance circumference/area(method of ellipse,method of loci) heart rate gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC) expected date of confinement and fetus weight,etc. full-screen character annotation,with report page Gray scale - 256 levels Gain Control - 8 segments TGC control and overall gain can be adjusted respectively Permanment storage - 128 images Cine loop: - 256 frames or check one by one Output interface: - 2 SVGA video outputs and 2 PAL video outputs II.Standard Configuration: 2.One host machine 4.One Ultrasound keyboard 5.One Computer keyboard 6. One Computer mouse III Optionals Linear, Trans-vaginal, Micro-convex, Rectal probe Laser/ink printer Video Printer 3D imaging function
