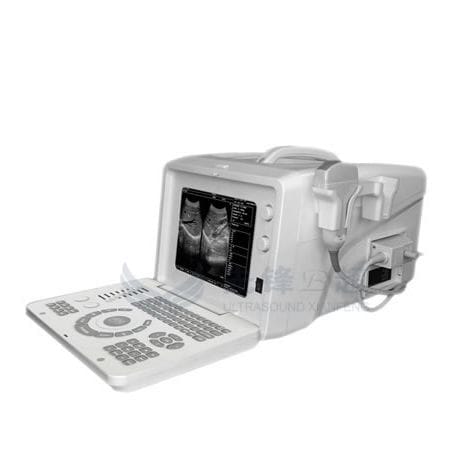

Portable veterinary ultrasound system XF218

multipurposefor equinesfor sheep

Probe automatic identification Focus - 4 segments dynamic electron focusing double encoder regulations Image processing - Variable aperture dynamic apodization Dynamic filter Edge enhancement Digital space-time filter 8γ corrections 16 pesudo colors Line correlation Frame correlation point correlation linear interpolation According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. Measurement and Note - Distance circumference/area(method of ellipse,method of loci) heart rate gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC) expected date of confinement and fetus weight,etc. full-screen character annotation,with report page Gray scale - 256 levels Gain Control - 8 segments TGC and overall gain can be adjusted respectively Permanment storage - 128 images Cine loop: - 256 frames or check one by one Output interface: - 2 SVGA video outputs and 2 PAL video outputs II.Stamdard Configuration: 1. One host machine 3. One power adapter 4.USB port Stamdard Configuration
