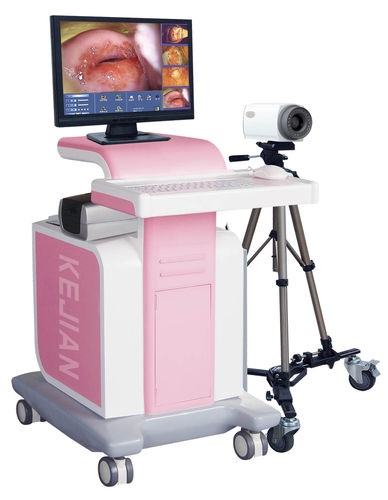

Video colposcope AD-2000Y

trolley-mounted

System image resolution:480TVL Camera: CCD camera, effective pixels no less than 740 thousand Lens:26 times of optical zoom,3.5(the wide angle end)--91.0mm(distal end)optical zoom lens(F1.6--F3.8) Digital zoom:12times (312 times zoom) The shortest shooting distance:320mm(the wide angle end )to 800mm(distal end) 1.6 range of vision:2.5mm--20mm--320mm The wide angle end F=3.5mm Light source: round ultra-low temp. LED light source, illuminance more than 1.5*103Lux Lens SNR: not less than 50dB DSP automatic focusing system ,manual focusing adjustable Real-time image capturing including automatic and manual two type of ways ,several images display in one screen simultaneously The image processing with the function of zoom in ,zoom out ,strengthen, pseudo color, positive, negative, marking with the function of measuring ,calculating and copy ,which can measuring perimeter and area Editing the printed report freely, and the diagnostic report and operative report can be printed out and edited to different report modes ,and then become a user template. With function of record, display, frozen , cine replay, storing ,deleting images .
