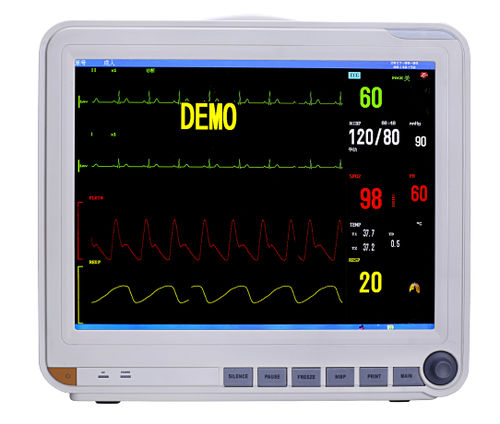

Compact multi-parameter monitor YK-8000D

portableECGRESP

Quality Standards and Classification CE, ISO13485 SFDA: Class Ⅱb Anti-electroshock degree: ClassⅠequipment (internal power supply) TEMP/SpO 2 /NIBP: BF ECG/Resp: CF Environment Operating environment : Temperature: 0 ~ 40 ℃ Humidity: 15% ~ 80% Pressure: 86.0 kPa ~ 106.0kPa Transport and Storage environment : Temperature: -20 ~ 55 ℃ Humidity: 10% ~ 90% Pressure: 86.0 kPa ~ 106.0kPa Power Requirements AC: 100 ~ 240V, 50Hz/60Hz DC: Built-in rechargeable battery Battery: 11.1V 24wh Li-ion battery 5min operating after low battery alarm Date Storage Tend diagram/table: 720h NIBP review: 10000 events Wave review: 12h Alarm review: 200 alarm events Support drug concentration titration analysis ECG 5 Leads: RA, LA, LL, RL, V Lead mode: Ⅰ,Ⅱ, Ⅲ, AVR, AVL, AVF, V Gain: × 1.25mm/mV,2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV (error ≤ 5%) Sweep speed: 6.25mm/s,12.5mm/s,25mm/s, 50mm/s (error ≤ ± 10%) Bandwidth: Surgery 1 ~ 25 Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~ 130 Hz Sensitivity: >200 μ V P-P CMRR: ≥ 112dB Differential Input Impedance: >5M ohm Electrode Offset Potential: ±300mV Polarization Voltage: ≥ ± 500mV Input Impedance: ≥ 5 M
