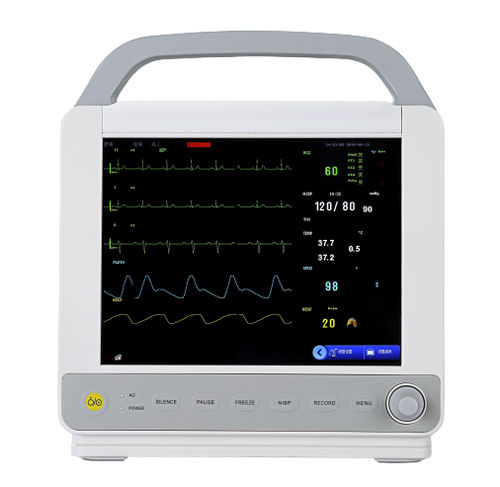

Portable patient monitor E8

modularECGTEMP

Quality Standards and Classification CE, ISO13485 SFDA: Class Ⅱb Anti-electroshock degree: ClassⅠequipment (internal power supply) TEMP/SpO 2 /NIBP: BF ECG/Resp: CF Environment Operating environment : Temperature: 0 ~ 40 ℃ Humidity: ≤85% Altitude: -500 ~ 4600m Transport and Storage environment : Temperature: -20 ~ 60 ℃ Humidity: ≤93% Altitude: -500 ~ 13100m Power Requirements AC: 100 ~ 240V, 50Hz/60Hz DC: Built-in rechargeable battery Battery: 4000mA 11.1V lithium battery 5min operating after low battery alarm Date Storage Trend diagram/table: 7x24h NIBP review: 400 events Wave review: 100min Alarm review: 100 alarm events Support drug concentration titration analysis ST Segment ST Segment Range: -2.0mV ~ +2.0mV Accuracy: 0.02mV ECG 5 Leads: RA, LA, LL, RL, V Lead mode: Ⅰ,Ⅱ, Ⅲ, aVR, aVL, aVF, V Increase: ×250，×500，×1000，×2000 Sesitivity: > 200 uV (Peak-to-peak value) Input impedance: > 5 ( megohm ) Bandwidth: Surgery 1 ~ 20 Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~ 130 Hz CMRR: ≥ 100dB Polarization Voltage: ± 300mV Baseline Recovering Time: After defibrillation< 3 seconds Signal Range: 8 mV（Peak-to-peak value） Calibrating Signal: 1mV, precision ±5% RESP Method: RA-LL impedance Resp Impedance range: 0.3 ~ 3 Ω Base Impedance range: 200 Ω ~ 4000 Ω Bandwidth: 0.1 ~ 2.5Hz Resp rate: Adult 0 ~ 120BrPM Neonatal/Pediatric 0 ~ 150BrPM Resolution: 1BrPM Precision: ±2 BrPM Asphyxia Alarm: 10～40 seconds
